JGX-0480A series
Xi'an Hoan Microwave Co., Ltd. has launched the JGX-0480A series steel wire rope vibration isolators, which integrate innovative materials and structural mechanics design to provide all-round vibration isolation protection for precision equipment. Its core adopts high-strength stainless steel wire rope spiral weaving, which absorbs wide-frequency vibration through elastic deformation, significantly reduces resonance transmission, and ensures the stability and reliability of equipment under complex working conditions.
The series of vibration isolators has excellent anti-fatigue performance and still maintains good elasticity after tens of thousands of vibration tests, making it suitable for industrial scenarios with long-term high-load operation. At the same time, its lightweight design reduces the overall weight of the equipment, and the installation is flexible and convenient. Whether for laboratory precision instruments or military radars in field operations, JGX-0480A can effectively suppress environmental vibration interference, improve equipment accuracy and service life, and is an indispensable vibration reduction partner in the high-tech field.
| Model | “H”±3.30 | “W” | Unit weight | Mounting options | Thru hole(mm) | Thread(mm) | C'sink(°) |
| JGX-0480A-75A | 30 | 36 | 0.304 | D | ∅6.9±0.13 | M6×1.0 | 90 |
| JGX-0480A-72A | 33 | 38 | 0.32 |
| JGX-0480A-61A | 36 | 41 | 0.336 | B,D,E |
| JGX-0480A-59A | 38 | 43 | 0.336 | A,B,C,D,E,S |
| JGX-0480A-52A | 41 | 46 | 0.352 |
| JGX-0480A-50A | 43 | 48 | 0.4 |
| JGX-0480A-37A | 51 | 58 | 0.416 |
| JGX-0480A-24A | 54 | 75 | 0.432 |
| JGX-0480A-18A | 62 | 88 | 0.448 |
| JGX-0480A-12A | 81 | 107 | 0.464 |

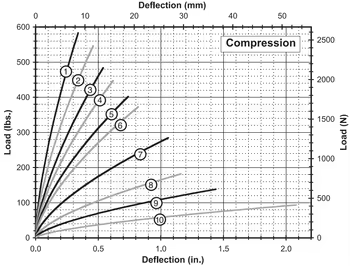

Static-Load Curve
| No. | Model | Max Static Load (kg) | Max Deflection (mm) | KV(Vibration) (KN/m) | Ks(Shock) (KN/m) |
| 1 | JGX-0480A-75A | 75 | 8.6 | 578 | 363 |
| 2 | JGX-0480A-72A | 72 | 11.7 | 455 | 252 |
| 3 | JGX-0480A-61A | 61 | 13.7 | 347 | 189 |
| 4 | JGX-0480A-59A | 59 | 15.7 | 301 | 152 |
| 5 | JGX-0480A-52A | 52 | 18.8 | 244 | 117 |
| 6 | JGX-0480A-50A | 50 | 20.8 | 212 | 96 |
| 7 | JGX-0480A-37A | 37 | 26.9 | 136 | 58 |
| 8 | JGX-0480A-24A | 24 | 29.5 | 82 | 33 |
| 9 | JGX-0480A-18A | 18 | 36.6 | 54 | 21 |
| 10 | JGX-0480A-12A | 12 | 52.8 | 29 | 10 |
| No. | Model | Max Static Load (kg) | Max Deflection (mm) | KV(Vibration) (KN/m) | Ks(Shock) (KN/m) |
| 1 | JGX-0480A-75A | 54.5 | 12.7 | 341 | 179 |
| 2 | JGX-0480A-72A | 52.2 | 16.8 | 258 | 126 |
| 3 | JGX-0480A-61A | 44.1 | 19.8 | 197 | 93 |
| 4 | JGX-0480A-59A | 41.7 | 22.9 | 172 | 75 |
| 5 | JGX-0480A-52A | 38.1 | 26.9 | 141 | 58 |
| 6 | JGX-0480A-50A | 35.7 | 29 | 123 | 49 |
| 7 | JGX-0480A-37A | 26.5 | 38.1 | 77 | 28 |
| 8 | JGX-0480A-24A | 18.1 | 41.7 | 49 | 18 |
| 9 | JGX-0480A-18A | 13.9 | 51.3 | 33 | 11 |
| 10 | JGX-0480A-12A | 9.3 | 74.7 | 18 | 5.3 |
| No. | Model | Max Static Load (kg) | Max Deflection (mm) | KV(Vibration) (KN/m) | Ks(Shock) (KN/m) |
| 1 | JGX-0480A-75A | 36.3 | 8.6 | 224 | 224 |
| 2 | JGX-0480A-72A | 36.3 | 11.7 | 156 | 156 |
| 3 | JGX-0480A-61A | 34.1 | 14.7 | 112 | 112 |
| 4 | JGX-0480A-59A | 31.7 | 16.8 | 93 | 93 |
| 5 | JGX-0480A-52A | 29.5 | 19.8 | 70 | 70 |
| 6 | JGX-0480A-50A | 27.2 | 21.8 | 60 | 60 |
| 7 | JGX-0480A-37A | 20.4 | 27.9 | 35 | 35 |
| 8 | JGX-0480A-24A | 5.9 | 31.0 | 11 | 11 |
| 9 | JGX-0480A-18A | 4.1 | 38.1 | 5.3 | 5.3 |
| 10 | JGX-0480A-12A | 2.2 | 55.9 | 2.3 | 2.3 |
