Customized GX-40AN Wire Rope Vibration Isolator with 113mm*40mm Size 32.5±mm Thickness and 1000℃-1800℃ Service Temperature

  • 1
  • 2
  • 3

Brand Name : Hoan

Model Number : GX-40A(N)

Place of Origin : China

MOQ : 4

Payment Terms : L/C,D/A,D/P,,T/T,MoneyGram

Thickness : 32.5±mm

Product Material : Various materials available

Size : 113mm*40mm

Service Temperature : 1000℃-1800℃

Chemical Stability : Extremely high chemical stability

Color : Customizable

Printing : yes

Thermal Shock Resistance : Good thermal shock resistance

Shipping : by sea

Shape : rectangle

Product Type : Customization Service

Product Design : Customizable

Thermal Shock Stability : Good thermal shock stability

Contact Now

Xi'an Hoan Microwave Customized Products - GX-40AN
The Best Choice for Lightweight Design in Aerospace and Vehicle-Mounted Fields
GX-N Series - Preferred for Lightweight Design

In aerospace, UAVs, and high-end vehicle-mounted electronics applications, weight optimization is critical. Xi'an Hoan Microwave's GX-N Series wire rope vibration isolators deliver excellent vibration isolation and impact resistance while meeting stringent lightweight requirements.

  • Metal wire rope construction with aluminum alloy or stainless steel frames
  • Superior strength-to-weight ratio compared to traditional shock absorbers
  • Compact design saves valuable installation space
  • -standard manufacturing ensures reliability and durability
  • Ideal for electronic enclosures, airborne computers, navigation equipment, and radar systems
Structural Dimension Diagram
Customized GX-40AN Wire Rope Vibration Isolator with 113mm*40mm Size 32.5±mm Thickness and 1000℃-1800℃ Service Temperature
Model L(mm) A±0.3 H±1.5 W±1.5 d
GX-10A(N) 55 49 21 26 M3-7H
GX-20A(N) 84 68 29 35 M5-7H
GX-30A(N) 113 97 32.5 40 M5-7H
GX-40A(N) 113 97 32.5 40 M5-7H
GX-50A(N) 113 97 33 40 M5-7H
GX-60A(N) 133 117 31 40 M5-7H
Performance Characteristics

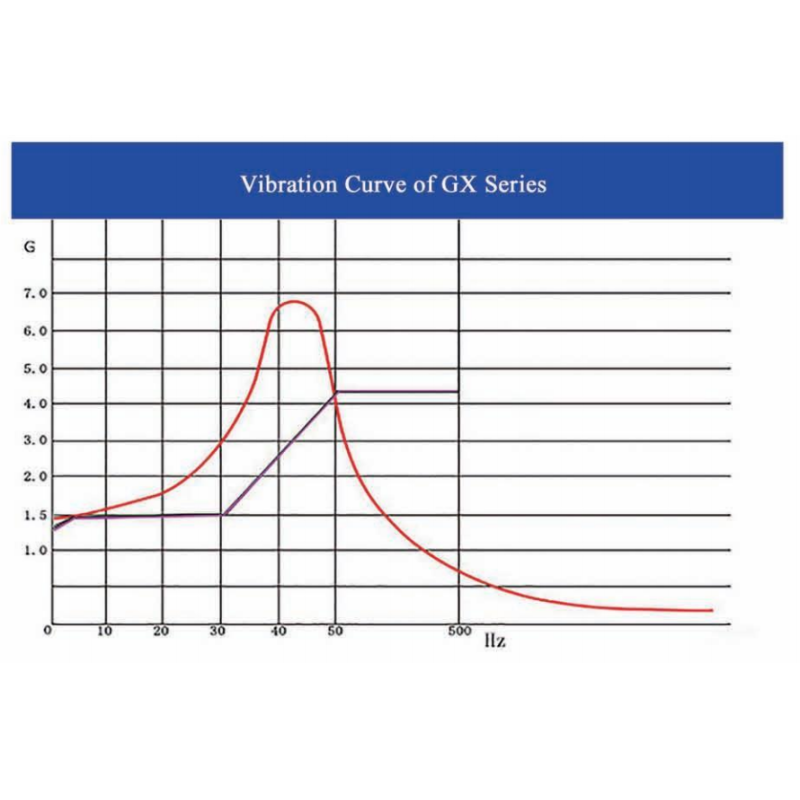

Vibration Curve
Customized GX-40AN Wire Rope Vibration Isolator with 113mm*40mm Size 32.5±mm Thickness and 1000℃-1800℃ Service Temperature
Impact Curve
Customized GX-40AN Wire Rope Vibration Isolator with 113mm*40mm Size 32.5±mm Thickness and 1000℃-1800℃ Service Temperature
Technical Parameter GX-10A(N) GX-20A(N) GX-30A(N) GX-40A(N) GX-50A(N) GX-60A(N)
Pz Nominal Load(N) Downward Pressure
Resonance Magnification ≤4
High Vibrating Efficiency ≥95%
Working Temperature -55°C to +120°C
Shock(Ks) 30g/6ms
Peak Response G ≤3.5km/s²
Vibration (Kv) Accord with National Standard GJB150-16
